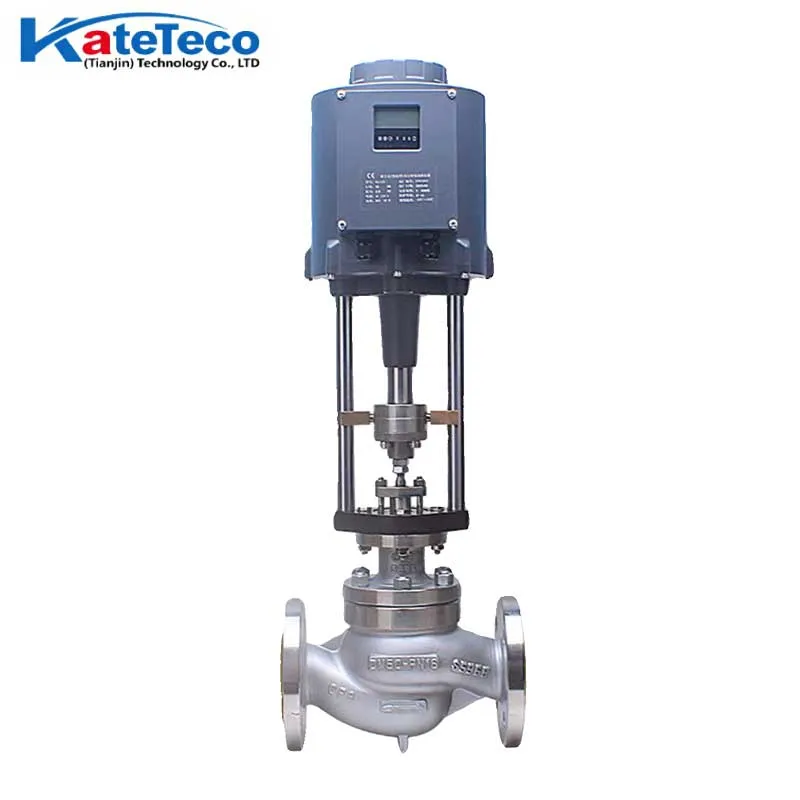

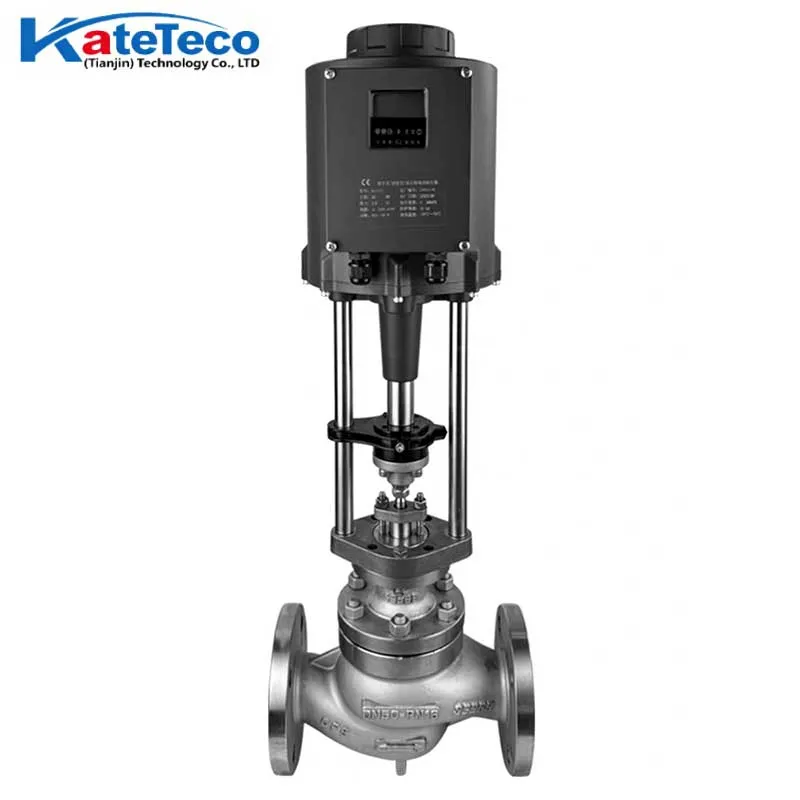

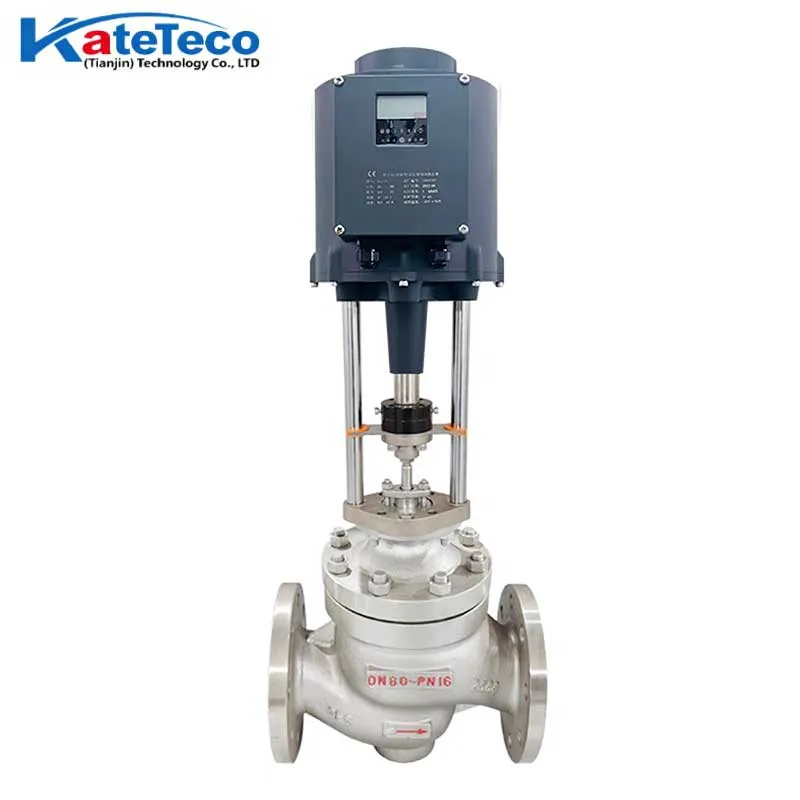

Electronic electric control valve, consisting of an electric actuator and a control mechanism. Built-in servo amplifier allows valve opening to be controlled by inputting a 4-20mA control signal, enabling precise regulation of pressure, flow rate, liquid level, temperature and other parameters. Widely used in industries such as petroleum, chemical, power generation, and water treatment.
| Kategorie | Attribut | Details |
|---|---|---|
| Grundlegende Informationen | Produktname | Electric Control Valve / Electric Single-Seat Control Valve / Electric Sleeve Control Valve / Electronic Electric Control Valve |
| Nenndurchmesser | DN15 ~ DN300 (Commonly DN20~DN200) | |
| Nenndruck | PN16 / PN25 / PN40 / PN64 (1.6MPa ~ 6.4MPa) | |
| Druckklasse | Class 150 ~ Class 600 (Optional) | |
| Ventilstruktur | Body Type | Straight-through Single-Seat Cast Globe Valve / Straight-through Sleeve Cast Globe Valve / Angle Type Cast Globe Valve |
| Verbindungstyp | Flanged Connection (RF, FF, MF, RTJ) / Welded (SW, BW) | |
| Strömungscharakteristik | Linear Characteristic / Equal Percentage Characteristic / Quick Opening Characteristic | |
| Körpermaterial | WCB (Cast Steel) / CF8 (304 Stainless Steel) / CF8M (316 Stainless Steel) / ZG1Cr18Ni9Ti | |
| Plug Material | 1Cr18Ni9Ti / 304 Stainless Steel / 316 Stainless Steel / Stellite Alloy Hardfacing | |
| Seat Seal | Hard Seal (Metal-to-Metal) / Soft Seal (PTFE) | |
| Verpackung | V-shaped PTFE / Flexible Graphite | |
| Aktuatorspezifikationen | Aktuatormodell | 3610L Series / PSL Series / 3810L Series |
| Stromversorgung | AC220V 50Hz (Standard) / AC380V / DC24V | |
| Eingangssignal | 4-20mA DC / 0-10mA DC / 1-5V DC / 0-10V DC | |
| Ausgangssignal | 4-20mA DC (Position Feedback) | |
| Action Type | Direct Acting (K Type) / Reverse Acting (B Type) | |
| Fail-Safe Position | Full Open / Full Close / Lock in Place (Optional) | |
| Schutzklasse | IP55 / IP67 | |
| Explosionsschutzklasse | Exd II BT4 / Exd II CT6 (Optional) | |
| Manuelle Bedienung | Manual override mechanism included / Handwheel | |
| Leistung | Rated Stroke | 10mm / 16mm / 25mm / 40mm / 60mm / 100mm |
| Rated Flow Coefficient Kv | 0.08 ~ 1760 (Depending on diameter configuration) | |
| Adjustable Ratio R | 50:1 | |
| Betriebstemperatur | Normal Temperature Type: -20℃ ~ +230℃ / Medium Temperature Type: +230℃ ~ +450℃ / Low Temperature Type: -100℃ ~ -45℃ | |
| Basic Error | ≤ ±2.5% (with 3610L) / ≤ ±1.0% (with positioner) | |
| Hysterese | ≤ ±2.0% (with 3610L) / ≤ ±1.0% (with PSL) | |
| Leckageklasse | Hard Seal: ≤10⁻⁴ × Valve Rated Capacity (Class IV) / Soft Seal: Class VI (Zero Leakage) | |
| Standards | Konstruktion & Fertigung | GB/T 12237 / GB12238 / JB/T 8692 |
| Flanschstandard | GB/T 9113 / JB/T 79 / HG/T 20592 / ANSI B16.5 / JIS / DIN | |
| Face-to-Face-Dimension | GB/T 12221 / IEC 60534 | |
| Prüfstandard | GB/T 13927 / JB/T 9092 | |
| Anwendungen | Typische Verwendung | Automatic control systems for pressure, flow rate, liquid level, temperature in industries such as Petroleum, Chemical, Metallurgy, Power Generation, Environmental Protection, Light Industry, Food & Beverage, Water Treatment, etc. |
| Anwendbare Medien | Water, Steam, Oil, Gas, Weakly Corrosive Fluids, Strongly Corrosive Fluids (Depending on material selection) |
Für Details zu Abmessungen oder anderen technischen Fragen kontaktieren Sie uns bitte.
