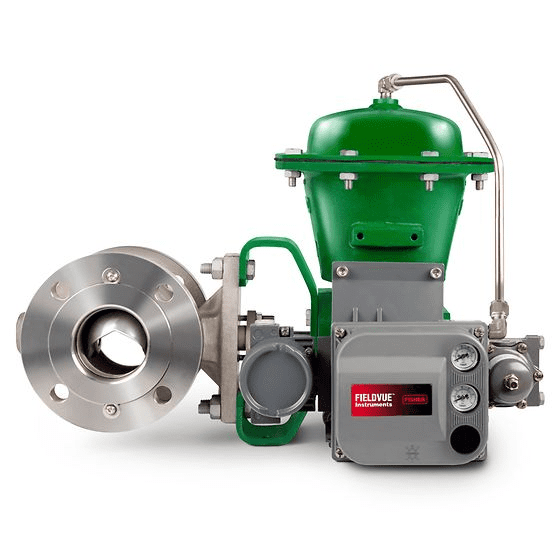

The Fisher™ Vee-Ball™ V300 Flanged Control Valve is a high-performance, flanged control valve designed for reliable throttling or on/off control in a wide range of process industries . It combines the robustness of a globe valve with the high efficiency of a rotary valve, making it a versatile and cost-effective solution for numerous applications .
The Fisher™ Vee-Ball™ V300 Flanged Control Valve is a high-performance, flanged control valve designed for reliable throttling or on/off control in a wide range of process industries . It combines the robustness of a globe valve with the high efficiency of a rotary valve, making it a versatile and cost-effective solution for numerous applications .
This valve is engineered to handle challenging services, including noise abatement, cavitation, dirty service, erosive, low flow, and corrosive media . Its precision-machined components and pressure-balanced seal design ensure exceptionally smooth and precise operation . The robust, heavy-duty metal-sealed construction provides a long service life, even in the most severe operating conditions .
Key Features & Benefits:
Excellent Flow Control: The contoured V-notch ball provides a modified equal percentage flow characteristic for superior control . For extremely precise low-flow control, an optional Micro-Notch trim is available for NPS 1 valves .
Interchangeable Trim: Internal trim components are interchangeable with existing V150, V200, and V300 Series B valves, simplifying inventory and reducing maintenance procedures .
Easy Installation & Maintenance: The flanged body design minimizes exposed pipeline flange bolting, reducing alignment and installation time . The ball seal can be inspected and replaced through the valve inlet without removing the actuator or disassembling the valve .
Enhanced Sealing & Environmental Performance: The optional ENVIRO-SEAL™ packing system features a very smooth shaft surface and live loading to provide excellent sealing performance, helping to control emissions .
Material Versatility & Acid Gas Capability: Constructed from materials like Carbon Steel, Stainless Steel, Duplex, and Alloys, making it suitable for sour liquid and gas applications compliant with NACE MR0175/ISO 15156 .
Structural Integrity: A one-piece body design eliminates potential leak paths associated with two-piece, bolted body designs, enhancing the pressure boundary’s integrity .
| Feature | Description |
|---|---|
| Product Line | Fisher™ Vee-Ball™ |
| Valve Type | V300 Flanged Control Valve |
| Primary Applications | Noise Abatement, Cavitation, Dirty Service, Erosive, Low Flow, Corrosive, General Service |
| Flow Characteristic | Equal Percentage |
| Body Materials | Carbon Steel, Stainless Steel, Duplex, Alloys |
| Operating Temperature | Standard Temperature |
| Pressure Ratings | PN, ASME (CL150) |
| End Connection Types | Flanged |
| Shutoff Class | Class III (FCI 70-2), Class IV (FCI 70-2), Class VI (FCI 70-2) |
| Certifications | SIL, ATEX, CUTR, PED, CRN, Fugitive Emissions, NACE |
The Fisher™ Vee-Ball™ V300 Control Valve is available in a comprehensive range of sizes to meet various application demands .
| Valve Size (NPS) |
|---|
| NPS 1 |
| NPS 1-1/2 |
| NPS 2 |
| NPS 3 |
| NPS 4 |
| NPS 6 |
| NPS 8 |
| NPS 10 |
| NPS 12 |
| NPS 16 |
| NPS 20 |
Note: The valve sizing standard is NPS and DN . The V300 is designed for pressure class CL150 . For more detailed technical specifications, exact model numbers for specific pressure classes, and custom options, please contact our sales team.
If you have any questions or are unsure about the correct Fisher™ Vee-Ball™ V300 model for your application, please do not hesitate to contact the Kateteco sales team. Our technical experts are ready to assist you in selecting the perfect valve for your needs.
