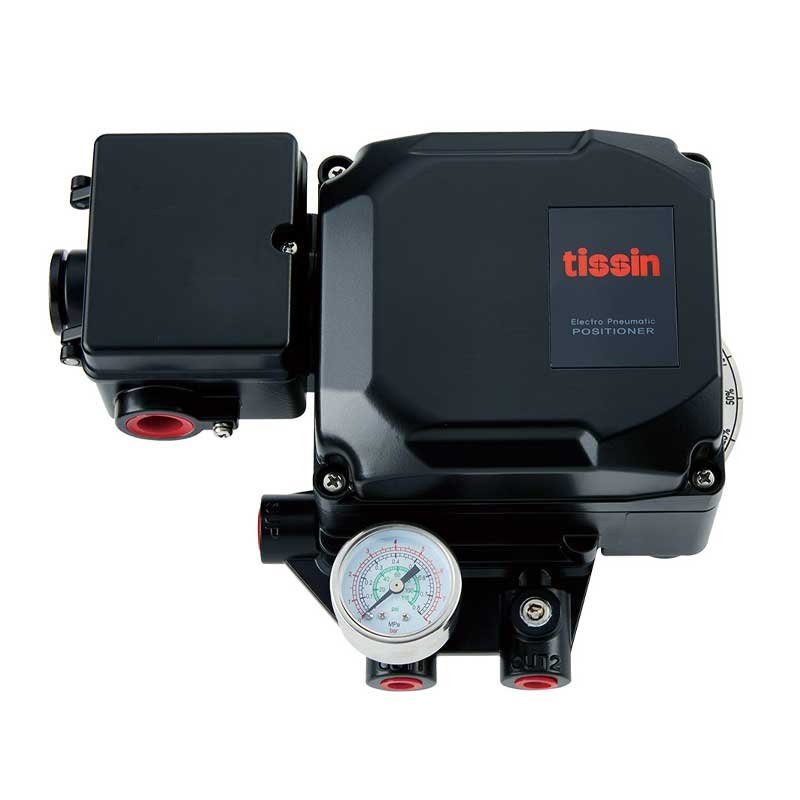

The TISSIN TS600R E-P Positioner with integrated position transmitter provides precise valve control and direct valve position feedback via 4-20mA signal for rotary applications.
Core Features & Benefits:
All-in-One Control & Monitoring: This unit combines the functions of an E-P (Electro-Pneumatic) positioner and a position transmitter in a single device. It not only controls the valve but also provides a continuous 4-20mA feedback signal proportional to the actual valve position (0-90°), enabling precise remote monitoring and closed-loop control within your DCS or PLC system.
Enhanced Process Insight & Safety: The integrated transmitter provides critical, real-time valve position data for enhanced process visibility and diagnostics. This feature is crucial for safety instrumented systems (SIS) and applications requiring high reliability and precise valve status confirmation.
Certified Robust Design: Built for demanding environments with a rugged IP66/IP67-rated enclosure. Engineered to comply with major international safety standards, including ATEX and IECEx certifications for use in hazardous locations, ensuring both operational reliability and regulatory compliance.
Optimized for Rotary Actuators: Specifically designed for quarter-turn (0-90°) rotary valves (butterfly, ball, plug), offering straightforward mounting and calibration directly on the actuator shaft, reducing installation complexity and space requirements.
Technical Parameters:
Control Input Signal: 4-20 mA DC (2-wire, for valve control command)
Feedback Output Signal: 4-20 mA DC (2-wire, for actual valve position, 0-90°)
Supply Air Pressure: 1.4 – 7 bar
Output Rotation / Position Range: 0° to 90° (standard quarter-turn)
Linearity (Positioning): < ±1.0% of full scale
Accuracy (Transmitter): < ±0.5% of full scale (typical for feedback)
Air Connections: 1/4″ NPT or G1/4 (Supply & Output)
Electrical Connections: Dual 1/2″ NPT or M20 entries (for separate power/control and feedback wiring)
Ambient Temperature: -20°C to +80°C
Enclosure Rating: IP66/67
Safety Certifications: ATEX / IECEx (Confirm specific Zone/Groups for your model).
Communications: Optional HART protocol overlay available on both control and feedback signals for advanced digital configuration and diagnostics.
Brand Promise & Value
The TS600R with position transmitter embodies TISSIN’s commitment to integrated, value-adding solutions. We go beyond basic control by delivering intelligent functionality that enhances system automation, safety, and diagnostic capability, all through our signature Korean precision engineering and reliable performance.
If you have any questions or need the official datasheet for exact model specifications, please consult the Kateteco team.
